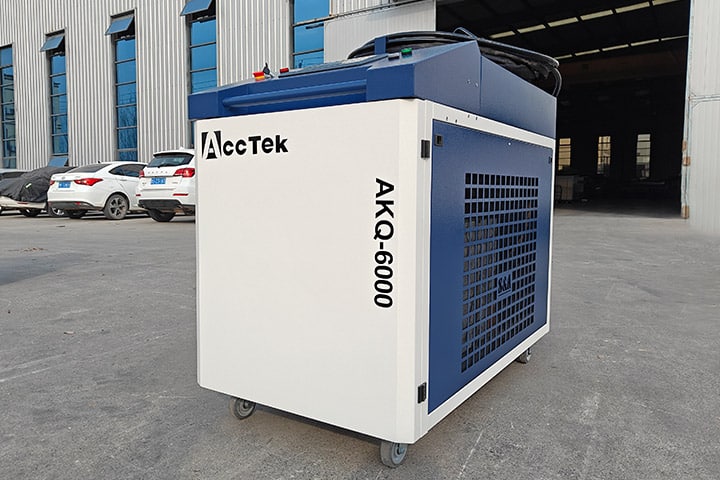

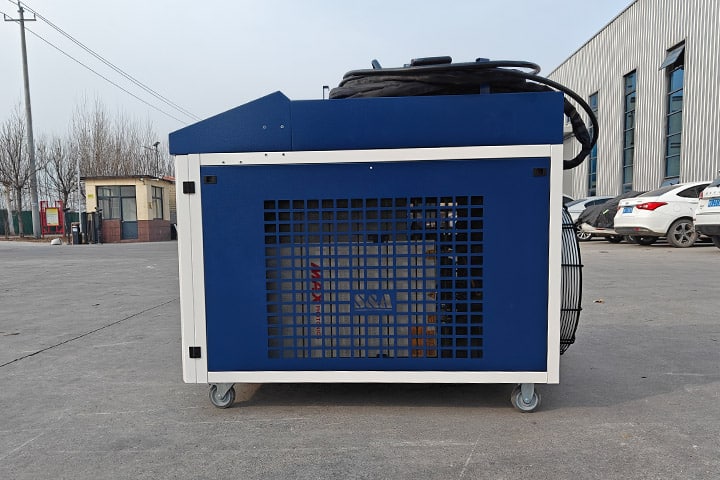

| Model | AKQ-1500 | AKQ-2000 | AKQ-3000 | AKQ-6000 |
|---|---|---|---|---|
| Laser Power | 1500W | 2000W | 3000W | 6000W |
| Laser Operating Modes | Continuous Wave Laser | |||
| Laser Generator | Raycus/Max/BWT/JPT | |||
| Laser Wavelength | 1080nm±10nm | |||
| Laser Power Tunability | 10-100% | |||
| Laser Cleaning Head | Au3tech | |||
| Laser Cleaning Width | 10-600mm | |||
| Control System | Au3tech | |||
| Expected Focal Distance | 160mm | |||
| Fiber Cable Length | 10m (JPT:15m) | |||
| Cooling Type | Water Cooling | |||
| Modulation Frequency | ≤20KHz | |||
| Voltage and Frequency | 380V/220V 50/60H | |||
| Working Environment | 10-40℃ | |||
| Operating Humidity | 5-95% | |||
| Comparison Item | Laser Cleaning | Sandblasting | Ultrasonic Cleaning | Dry Ice Blasting |
|---|---|---|---|---|
| Cleaning Principle | Uses focused laser energy to remove rust, paint, oxide, oil, and surface deposits | Uses high-speed abrasive particles to strike and remove contaminants | Uses high-frequency sound waves in liquid to create cavitation bubbles | Uses compressed air to blast dry ice pellets onto the surface |
| Surface Contact | Non-contact cleaning, no mechanical force on the workpiece | Direct impact on the surface with abrasive media | Workpiece must be placed in cleaning liquid | Dry ice pellets impact the surface but sublimate after contact |
| Surface Damage Risk | Low risk when parameters are correctly set | Higher risk of roughening, pitting, or removing base material | Low for many small parts, but unsuitable for some sensitive materials | Lower than sandblasting, but impact force may affect delicate parts |
| Cleaning Precision | Very high; suitable for selective and local cleaning | Lower precision; often cleans a wider area | Good for complex small parts immersed in liquid | Medium precision; better for broad surface cleaning |
| Suitable Materials | Metals, molds, stone, some composites, and selected coated surfaces | Metals, concrete, stone, and heavy-duty surfaces | Small metal, plastic, glass, and precision parts | Metal, rubber, plastic, food equipment, and industrial surfaces |
| Rust Removal | Very effective for light to heavy rust on metal surfaces | Very effective for heavy rust and scale | Limited; better for oil, grease, and fine particles | Moderate; better for dirt, oil, paint, and light residues |
| Paint Removal | Can remove paint layer by layer with controlled parameters | Fast paint removal but may damage the substrate | Not ideal for thick paint removal | Effective for some coatings, but not always for thick or hard paint |
| Oil and Grease Removal | Effective, especially with proper laser settings | Possible but may spread contamination or need extra treatment | Very effective for oil and grease on small parts | Effective for oil and grease without water |
| Cleaning Speed | Fast for targeted areas and automated production lines | Fast for large rough surfaces | Slower because parts need soaking and drying | Fast for large surfaces and production equipment |
| Environmental Impact | No abrasive waste, usually low secondary pollution | Produces dust, spent abrasive, and contaminated waste | Requires cleaning liquid and wastewater treatment | No blasting media residue, but requires CO₂ dry ice supply |
| Consumables | No regular cleaning media required | Requires sand, grit, or other abrasive media | Requires cleaning solution and sometimes additives | Requires dry ice pellets and compressed air |
| Operating Cost | Higher initial cost, lower consumable cost | Lower equipment cost, higher ongoing media and cleanup cost | Moderate cost, depending on tank size and liquid use | Ongoing dry ice and compressed air costs can be high |
| Equipment Investment | Higher initial investment | Usually lower initial investment | Low to medium for small systems; higher for large industrial tanks | Medium to high depending on system size |
| Automation Capability | Excellent; easy to integrate with robots, CNC systems, and production lines | Possible, but media handling and dust control are more complex | Suitable for batch cleaning, less flexible for large parts | Can be automated, but dry ice supply must be managed |
| Cleaning of Complex Shapes | Good for accessible surfaces, corners, welds, and molds | Good for exposed surfaces but may be uneven in narrow areas | Excellent for small complex parts fully immersed in liquid | Good for many shapes, but deep narrow gaps may be difficult |
| Post-Cleaning Treatment | Usually little or no post-cleaning required | Often requires dust removal and surface finishing | Requires rinsing and drying | Usually little residue, but moisture/condensation may need attention |
| Worker Safety | Requires laser safety glasses, enclosure, and fume extraction | Requires dust protection, blasting suit, and hearing protection | Requires chemical handling and liquid safety measures | Requires ventilation, hearing protection, and care with cold materials |
| Noise Level | Relatively low to medium depending on system and extraction | High noise during blasting | Low to medium | High due to compressed air blasting |
| Best Application Scenarios | Precision rust removal, weld cleaning, mold cleaning, oxide removal, coating removal, and automated cleaning | Heavy rust, scale, old coating removal, and rough surface preparation | Small precision parts, medical parts, electronics parts, and oil removal | Food equipment, molds, production lines, and cleaning without water |
| Main Limitation | Higher purchase cost and need for laser safety control | Dust, abrasive waste, surface roughening, and cleanup work | Limited by tank size, liquid use, and drying requirements | Requires dry ice supply, compressed air, and good ventilation |
AccTek Laser uses advanced fiber laser technology to ensure stable performance and precise cleaning results. Their machines provide efficient removal of rust, paint, oil, and coatings while protecting the base material, making them suitable for many industrial cleaning applications.
AccTek Laser offers a variety of laser cleaning machines with different power levels and configurations. Customers can choose from portable handheld machines to high-power industrial systems, allowing businesses to select the most suitable equipment for their specific cleaning tasks.
AccTek Laser machines are built with reliable components such as premium fiber laser sources, high-speed scanning systems, and durable control units. Using quality parts improves system stability, extends machine lifespan, and ensures consistent performance during long-term industrial operation.
AccTek Laser provides flexible customization based on customer needs. Laser power, cooling systems, cleaning width, and automation options can be adjusted according to different applications. This helps businesses achieve optimal cleaning efficiency for various materials and contamination types.
AccTek Laser offers comprehensive technical support, including machine selection guidance, installation assistance, and operation training. Their experienced engineering team helps customers quickly understand the equipment and ensures smooth machine operation after installation.
AccTek Laser serves customers in many countries and provides dependable international service. Detailed documentation, remote technical support, and responsive after-sales service help customers maintain machine performance and minimize downtime during daily production operations.
Is laser dust removal harmful to humans? This guide covers health risks, safety standards, protective measures, and best practices for safe industrial laser dust removal.
This article systematically explains the types and principles of laser cleaning machine cooling systems, daily inspection and maintenance procedures, and methods for diagnosing and handling common faults, helping users quickly
This article will systematically analyze the main limitations of laser cleaning from an engineering and application perspective, and provide mature and practical solutions to help manufacturing companies make informed decisions.
This article delves into the safety operation training requirements for laser cleaning machines in industrial applications, covering laser safety, protective equipment, equipment maintenance, risk management, and compliance standards.
The price of a 6000w laser cleaning machine can vary based on several factors, including brand, specifications, features, and additional options or accessories. Prices may also be affected by suppliers, location, and market conditions and change over time. Typically, a 6000w laser cleaning machine costs between $15,000 and $20,000. Please note, however, that these are approximate prices and actual prices may vary significantly.
Factors that affect the price of a laser cleaning machine include laser generator type, build quality, automation features, control systems, scanning systems, safety features, warranty, and aftermarket support. Additionally, any optional accessories or customizations you require may also add to the overall cost. For the most accurate pricing information, I recommend contacting multiple suppliers, comparing their offerings, and discussing your specific requirements to obtain a tailored quote.
AccTek Laser is a professional laser cleaning machine manufacturer, if you want to get accurate price information for a 6000w laser cleaning machine, you can contact us. We can also provide you with details on pricing and any additional costs associated with the machine, such as shipping, installation, or training. Additionally, our engineers will provide you with information on pricing and options, and recommend the best laser cleaning machine for your application and budget.
The 6000w laser cleaning machine can effectively clean various surfaces. The versatility of laser cleaning technology allows it to be used on a variety of materials, including:
These are just a few examples of surfaces that a 6000w laser cleaning machine can effectively clean. It is important to note that the effectiveness of laser cleaning on a particular surface depends on factors such as the optical properties of the material, surface texture, and the type of contamination being removed. Before using a 6000w laser cleaning machine on any surface, it is recommended to test or consult an expert to ensure compatibility and determine the proper laser settings for a particular cleaning application.
The 6000w laser cleaning machine has several limitations when it comes to cleaning materials and surfaces:
In summary, the 6000w laser cleaning machine performs well in certain applications, but its limitations make it necessary to consider the specific cleaning needs and conditions when choosing a cleaning method.
Yes, like any piece of sophisticated industrial equipment, a 6000w laser cleaning machine requires regular maintenance and care to ensure its optimum performance and longevity. While specific maintenance requirements may vary by make and model, here are some general maintenance aspects to consider:
It is recommended to refer to the manufacturer’s documentation, owner’s manual, and maintenance guide specific to the 6000w laser cleaning machine you are using. They will provide detailed instructions on maintenance procedures, recommended service intervals, and any specific considerations for your particular model. Regular maintenance and upkeep will not only help ensure optimal machine performance but also contribute to the longevity and reliability of your laser cleaning system.
The 6000w laser cleaning machine can effectively clean various materials and surfaces in various industrial applications. Some common applications where it can be used effectively include:
These are just a few examples of the many applications where a 6000w laser cleaning machine can be used effectively. The versatility and precision of laser cleaners make them suitable for demanding cleaning tasks that require efficient and precise removal of different surface contaminants.
Yes, 6000w laser cleaning machines usually allow adjustment of power output or intensity. Laser cleaning machines are designed with control systems that enable operators to adjust various parameters, including power output, pulse duration, and laser beam characteristics, to optimize the cleaning process for different materials and surface conditions.
These adjustable parameters give operators the flexibility to optimize the power output or intensity of the laser cleaning process for specific materials, contaminants, and cleaning requirements. It allows them to adjust cleaning parameters to achieve the desired results while minimizing the risk of damage to the surface being cleaned. It is important to note that specific controls and adjustment capabilities may vary by the make and model of the laser cleaning machine. It is recommended to refer to the owner’s manual of the machine or consult the manufacturer for details on adjusting the power output or intensity.
The 6000w laser cleaning machine will produce a lot of noise during operation. Noise levels may vary depending on factors such as the design of the machine, the cooling system employed, and the specific cleaning process being performed. Laser cleaners usually incorporate cooling systems, such as fans or water cooling, to dissipate the heat generated by the laser source. These cooling systems affect the overall noise level of the machine. Additionally, the process of laser cleaning itself involves the interaction of the laser beam with the surface being cleaned, which creates additional noise.
To reduce noise, many laser cleaning machines are equipped with noise reduction measures. These measures can include thermally insulated enclosures, soundproofing materials, or the use of quiet cooling systems. These features are designed to minimize the noise produced by the machine and provide a more comfortable working environment.
It should be noted that the noise level of 6000w laser cleaning machines will still vary, and some machines may produce more noise than others. When considering installing a laser cleaning machine, it is advisable to consult the manufacturer or supplier for details regarding noise levels and any specific noise reduction measures implemented in their particular model. In some cases, additional noise reduction measures may be required, depending on the noise sensitivity of the environment or specific regulations. This may involve implementing further soundproofing measures, such as isolating machines in separate rooms or using additional noise-dampening materials.
The 6000w laser cleaning machine is a powerful tool that requires several safety measures to ensure the safety of the user. These measures are implemented to minimize the risk of accidents, injuries, and exposure to harmful laser radiation. Here are some common safety features and measures found in laser cleaning machines:
It should be noted that the specific safety measures of different laser cleaning machine models and manufacturers may be different. Users should carefully read the user manual and safety guide provided by the manufacturer for the specific 6000w laser cleaning machine they are using to ensure that the recommended safety procedures are properly understood and followed.
4 reviews for 6000W Laser Cleaning Machine
Lucas –
This laser cleaning machine has made preparing metal surfaces much easier for me. It removes rust and coatings effectively without affecting the base material, which is important for my work. The handheld head gives me precise control, especially when working on smaller or detailed parts. The machine is easy to move around the shop, which saves time between jobs. The performance has been stable, and I haven’t noticed any drop in quality. The cooling system works well, even during longer tasks. It’s a reliable tool that has improved both efficiency and consistency in my daily work.
David –
From my experience managing equipment, this laser cleaning machine is well-designed and easy to maintain. It has a compact structure, so it doesn’t take up much space in our workshop. The mobility is also a big advantage, especially when moving between tasks. The cleaning performance is steady, and the beam remains consistent during operation. The control system is straightforward, making it easy to adjust parameters when needed. The cooling system works efficiently and keeps everything stable. I haven’t had to deal with many issues so far. It’s a reliable machine that performs well in a busy work environment.
Grace –
I’ve been using this machine as part of our assembly preparation, and it has been very helpful. The cleaning process is straightforward, and the results are consistent across different parts. The handheld head is lightweight and easy to control, which makes it comfortable during extended use. The machine runs smoothly without unexpected issues. I also like how easy it is to move between stations. The control system is simple, so I can adjust settings without confusion. The cooling system works well and keeps the machine stable. It’s a reliable addition that has improved our workflow.
Emma –
I use this machine almost every day as part of our production process, and it has been very reliable. The cleaning results are consistent, which helps maintain quality standards. The handheld cleaning head is comfortable to use and doesn’t cause strain during long shifts. The machine itself runs smoothly and doesn’t overheat, even when used continuously. I also like how easy it is to move around when needed. The control panel is simple and easy to understand. It’s a practical tool that supports our work without adding extra complexity or slowing down production.
