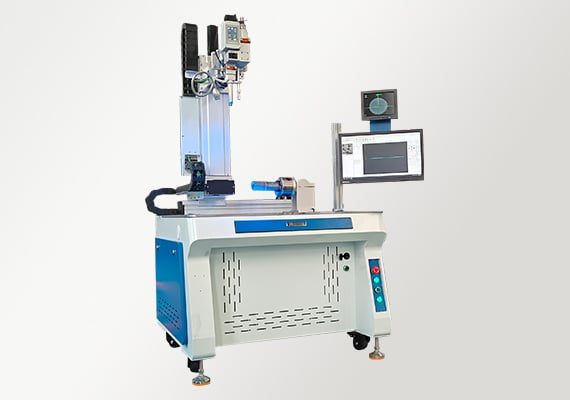

The platform design of the automatic laser welding machine integrates a robust and adaptable structure, ensuring precise alignment and stability during the welding process. This design facilitates easy setup, minimizes vibrations, and enhances operational efficiency, supporting a wide range of applications with optimal performance and durability.

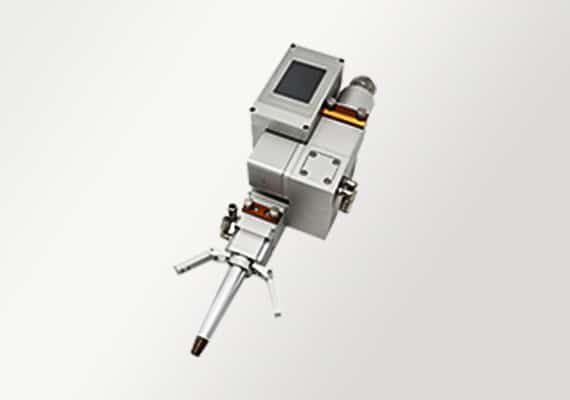

The DSW300 double-wobble laser welding head is a high-performance tool designed for precise and efficient laser welding applications. It features a double wobble function, which allows the laser beam to oscillate in different patterns, significantly improving welding quality by reducing defects such as cracks or weak joints. The DSW300 is also known for its high adaptability, making it suitable for various metals and alloys.
The continuous laser generator of the automatic laser welding machine delivers stable, high-power laser output for consistent and efficient welding. With precise control over energy delivery, it ensures optimal weld penetration and high-quality results. Its durable design supports continuous operation, making it ideal for high-volume production environments.

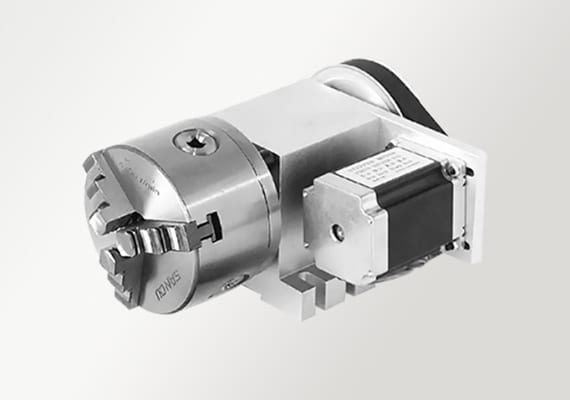

The rotary axis device in automated laser welding platforms enhances the system's versatility and flexibility. It enables the machine to handle the welding of cylindrical or other rotationally symmetric parts while ensuring high-speed, high-precision performance. The rotating shaft is often paired with clamping systems to securely hold the part in place during rotation.

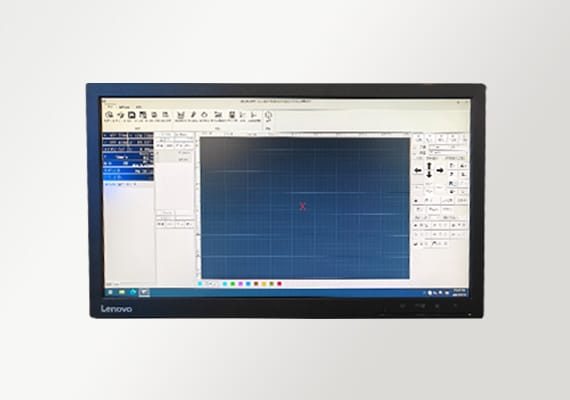

The automatic control system of the laser welding machine offers precise, real-time monitoring and adjustment of welding parameters. With an intuitive interface, it allows for seamless operation, optimizing power, speed, and focal adjustments. This system ensures consistent weld quality, improves efficiency, and reduces human error, enhancing overall machine performance.

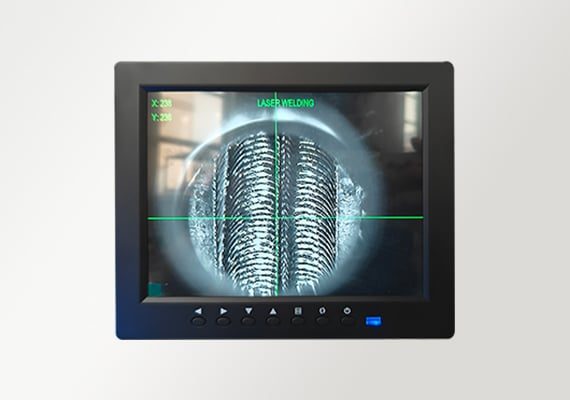

The inspection camera in the automatic laser welding machine provides real-time visual monitoring of the welding process. It ensures weld accuracy by capturing high-resolution images, allowing for immediate quality checks and adjustments. This system enhances precision, enables defect detection, and ensures consistent, high-quality welds for every operation.

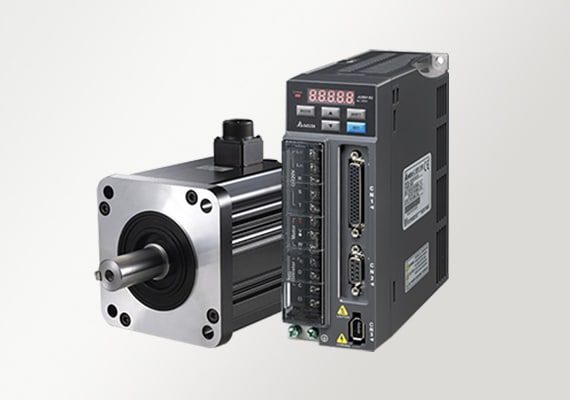

Delta servo motors are known for their superior torque, speed, and accuracy, making them ideal for tasks that require fine control over movement. They are driven by a servo drive that adjusts power output according to the load, allowing for energy efficiency and smooth operation.
The water chiller in the automatic laser welding machine ensures efficient cooling of critical components, maintaining optimal operating temperatures. With precise temperature control, it prevents overheating, extending the lifespan of the laser source and other system parts. This reliable cooling system enhances performance, ensuring stable, continuous operation during high-intensity welding tasks.
| Model | AKH-1500 | AKH-2000 | AKH-3000 | AKH-6000 |
|---|---|---|---|---|
| Laser Power | 1500W | 2000W | 3000W | 6000W |
| Laser Type | Continuous Fiber Laser | |||
| Laser Generator | Raycus/Max/BWT | |||
| Laser Wavelength | 1070nm | |||
| Laser Welding Head | Au3tech | |||
| Welding Gap Requirements | ≤0.5mm | |||
| Control System | Au3tech | |||
| Expected Focal Distance | 160mm | |||
| Platform Size | 800*1000mm | |||
| Z-Axis Height | 300mm | |||
| Rotation Axis Diameter | 100mm | |||
| Fiber Cable Length | 10m | |||
| Cooling Type | Water Cooling | |||
| Pulse-Frequency Range | 20-200 KHz | |||
| Voltage and Frequency | 380V/220V 50/60H | |||
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Carbon Steel | 0.5-1.5mm | 0.5-2mm | 0.5-3mm | 0.5-5mm |
| Stainless Steel | 0.5-1.5mm | 0.5-2mm | 0.5-3mm | 0.5-5mm |
| Brass | 0.5-1mm | 0.5-1.5mm | 0.5-2mm | 0.5-4mm |
| 1-3 Series Aluminum Alloys | 0.5-1.5mm | 0.5-2mm | 0.5-2mm | 0.5-3mm |
| 4-7 Series Aluminum Alloys | 0.5mm | 0.5-1mm | 0.5-1.5mm | 0.5-2mm |
| Copper | / | 0.5mm | 0.5mm | 0.5-1mm |
To determine if an automated laser welding platform is suitable for your application, you should consider factors such as the materials you need to weld, the precision required, the volume of production, and any specific weld types (e.g., spot welding, seam welding, or 3D welding). Consulting AccTek Group can help you select the right system, as we can assess your needs and provide recommendations based on your specific requirements.
Automatic laser welding platforms use laser generators from reputable brands such as Raycus, Max, and BWT, each offering reliable performance for various industrial applications. Raycus laser generators are widely recognized for their high stability, efficiency, and long service life, making them a preferred choice for industries requiring consistent and precise welding. Max provides cost-effective solutions with strong beam quality and durability, ensuring high-speed and reliable welding performance. BWT specializes in advanced laser technology, delivering high-precision laser sources that enhance accuracy and control, making them ideal for applications requiring fine detailing and intricate welds. The choice of laser generator depends on power requirements, material compatibility, and specific industry needs to ensure optimal welding efficiency and performance.
Automatic laser welding platforms are available in power options of 1500W, 2000W, 3000W, and 6000W, providing flexibility for various welding applications. The 1500W model is ideal for welding thin to medium-thickness materials, offering precise control, minimal heat distortion, and smooth welds, making it suitable for fine and detailed welding tasks. The 2000W option provides increased power for deeper penetration and faster welding speeds while maintaining high welding quality, making it a versatile choice for a wide range of materials. The 3000W model is designed for heavy-duty applications, offering high-speed welding with strong and durable weld joints, making it suitable for industries requiring efficient and high-strength welding. The 6000W version delivers maximum power, ensuring deep penetration and high efficiency, making it ideal for welding thick and high-strength materials in demanding industrial applications. Each power option balances energy efficiency, welding speed, and material compatibility, ensuring reliable performance for different manufacturing and industrial needs.
Automatic laser welding platforms can weld a wide range of metal materials, making them highly versatile for industrial and manufacturing applications. These machines are capable of welding stainless steel, carbon steel, aluminum, copper, brass, titanium, and galvanized steel with high precision and efficiency. Stainless steel is commonly used due to its excellent corrosion resistance, strength, and ability to form strong and durable welds. Carbon steel provides high structural integrity, making it suitable for heavy-duty applications where deep penetration and strong joints are required. Aluminum, known for its lightweight and high thermal conductivity, requires precise laser control to prevent warping and achieve high-quality welds. Copper and brass, which have high thermal conductivity, demand optimized laser parameters to ensure proper fusion without excessive heat dispersion. Titanium, often used in aerospace and medical industries, requires specialized welding techniques due to its strength and biocompatibility. Galvanized steel, which has a zinc coating for corrosion resistance, can also be welded effectively with proper adjustments to prevent defects. The automation in these platforms enhances precision, efficiency, and repeatability, making them ideal for applications in industries such as automotive, aerospace, electronics, and precision manufacturing.
The typical delivery time for automatic laser welding platforms is approximately 30 to 40 working days, depending on production schedules and order volume. If special customisations are required, such as modifications to power levels, automation features, or specialised welding capabilities, the delivery time may be extended to allow for design adjustments, additional testing, and quality assurance processes. Factors such as material availability, production demand, and shipping logistics can also influence the final delivery schedule. To obtain an exact estimate based on your specific order requirements and location, it is recommended to contact the AccTek Group directly.
Our laser welding machine includes comprehensive technical support options designed to ensure smooth operation and help you maximize machine efficiency. We offer:
Both support options are aimed at helping you achieve the best possible results with your machine. Please let us know if you’d like further details or if you’re interested in arranging on-site training.
Our laser welding machine is backed by a comprehensive warranty designed to give you peace of mind and protect your investment:
Please note that this warranty excludes damage resulting from improper use, mishandling, or other artificial causes.
Our laser-welding machine is certified with internationally recognized standards to ensure quality, safety, and compliance with industry requirements.
If additional certifications are required for specific regions or industries, please let us know, and we can provide further information.
With years of experience in laser welding technology, we have honed our expertise to provide cutting-edge solutions tailored to your unique needs. Our team of skilled engineers and technicians has the in-depth knowledge to ensure you get the perfect laser welding machine for your specific application.
At AccTek Laser, we build strong relationships with our clients. Our dedicated support team provides prompt assistance and after-sales service to keep your laser welding machine running at its best for years to come. Your satisfaction is our top priority and we will help you every step of the way.
Quality is the cornerstone of our manufacturing process. Every laser welding machine is rigorously tested and adhered to strict quality control standards, ensuring that the product you receive meets the highest industry benchmarks. Our dedication to quality ensures you get a machine that performs consistently and delivers perfect welds every time.
We understand the importance of cost efficiency in today’s competitive landscape. Our laser welding machines can provide excellent value for your investment, minimizing downtime and reducing operating costs while maximizing productivity and efficiency.
